Sgram TUI

Terminal Spectrogram Viewer — GitHub Repository

Overview



Install

Cargo (recommended)

cargo install --locked --path .   # from repo checkout
# or from local source
cargo build --release
./target/release/sgram-tui --help

Linux mic dependencies:

sudo apt-get install -y pkg-config libasound2-dev

One‑liner installer (prefer Cargo for reproducibility):

bash -c "$(curl -fsSL https://raw.githubusercontent.com/arian-shamaei/sgram-tui/main/scripts/install.sh)"

Quick Start

# Live microphone (macOS example)
./target/release/sgram-tui mic --device "BlackHole 2ch" --fps 15 --pre-emphasis 0.97 --normalize

# WAV with real-time throttle
./target/release/sgram-tui wav ./song.wav --realtime --pre-emphasis 0.97 --normalize

# Dense view & half-cell render (waterfall)
./target/release/sgram-tui wav ./song.wav --resolution high --render half --style waterfall

Usage & Flags

sgram-tui [mic|wav|FILE] [FILE] [flags]

--fft             FFT size (bin spacing fs/N)
--win             Window length; zero-pads to FFT if L < N
--hop             Hop size
--sample-rate    Target sample rate for processing
--alpha <1|2>        dB type (1=magnitude, 2=power)
--floor / --ceil     dB display range
--zoom            Zoom into low frequencies
--palette      grayscale | heat | jet | viridis | inferno | magma | plasma | purplefire
--style        horizontal | waterfall
--render       cell | half
--resolution         low | medium | high | ultra
--freq-scale         linear | log | mel
--png-path / --csv-path   quick-save destinations
--device  mic device match by substring
--overview           fit entire history into pane (overview)
--realtime           throttle WAV to approx. real time

Controls

Key	Action
q / Esc	Quit
p	Pause/Resume
a	Toggle style
+ / -	Zoom frequency range
[ / ]	Adjust dB floor
c / C	Cycle palettes
f	Fullscreen
o	Overview mode
d	Toggle details
s / S	Quick save / prompt PNG path
w / W	Quick save / prompt CSV path
h / F1	Help overlay

Configuration

Default config path: ${CONFIG_DIR}/io.github/arian-shamaei/sgram-tui/config.toml

Detailed = true
Fullscreen = false
Device = "USB Audio"   # substring match for mic device
png_path = "./out.png"  # quick save default
csv_path = "./out.csv"

Tip: Use smaller FFT and higher hop to reduce CPU; try --fft 1024 --hop 256 with --fps 15.

Export

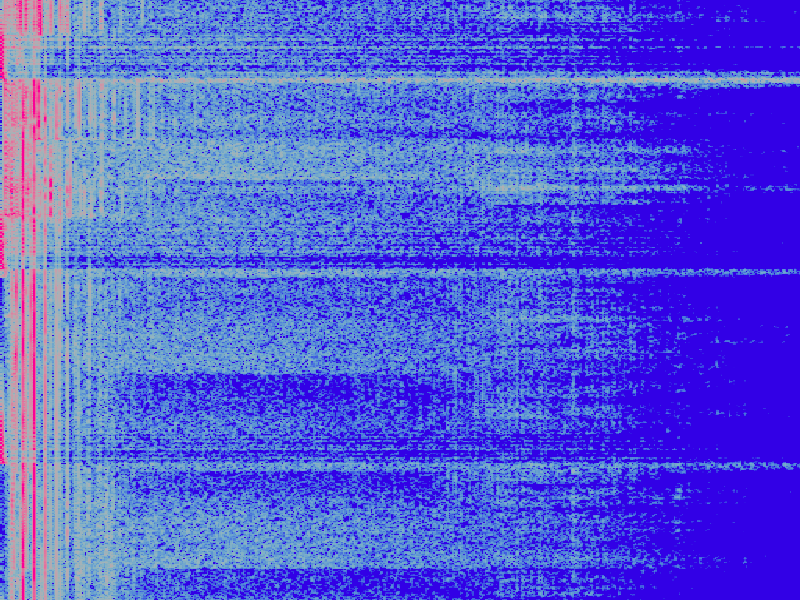

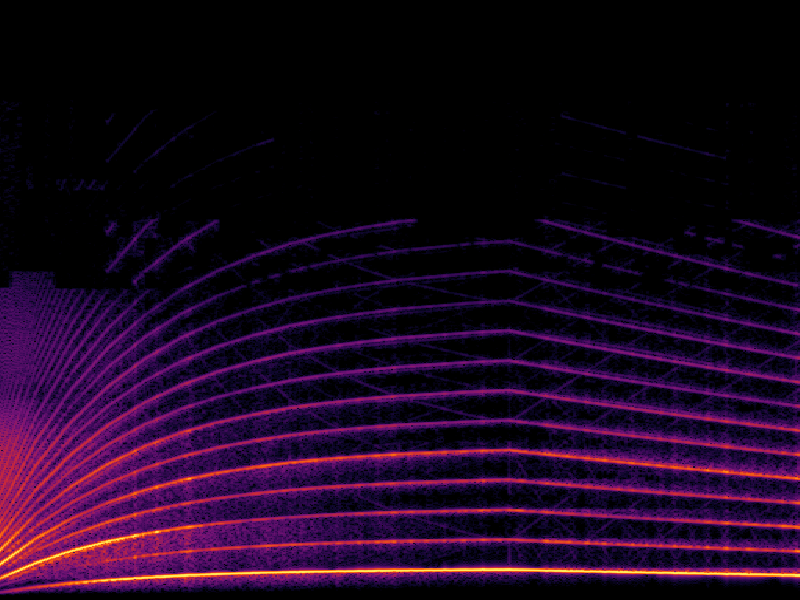

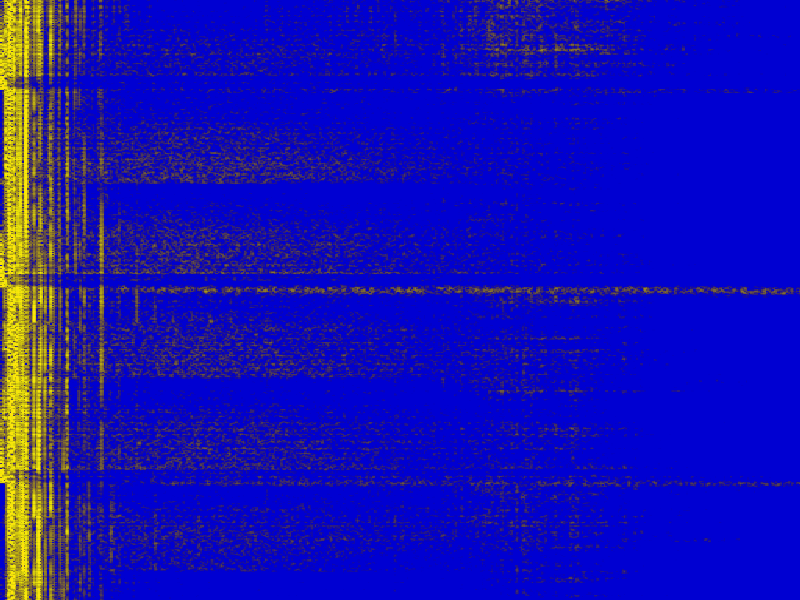

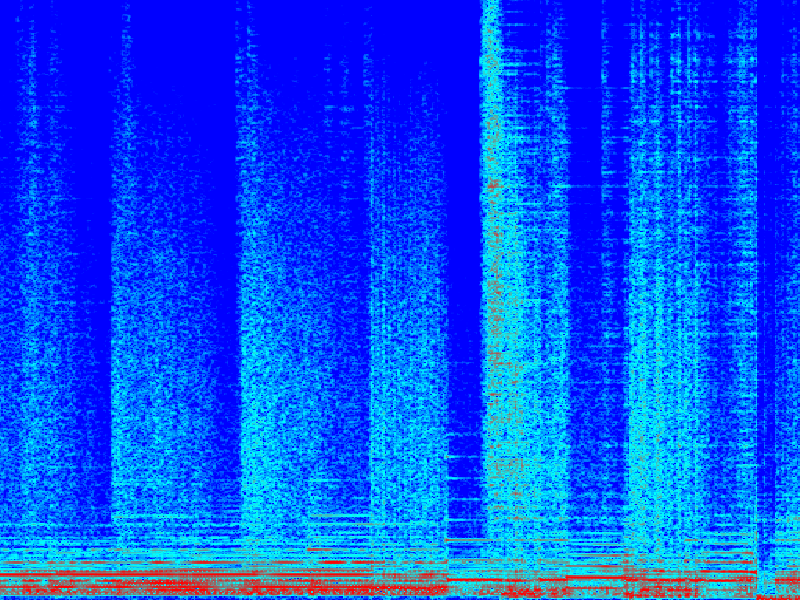

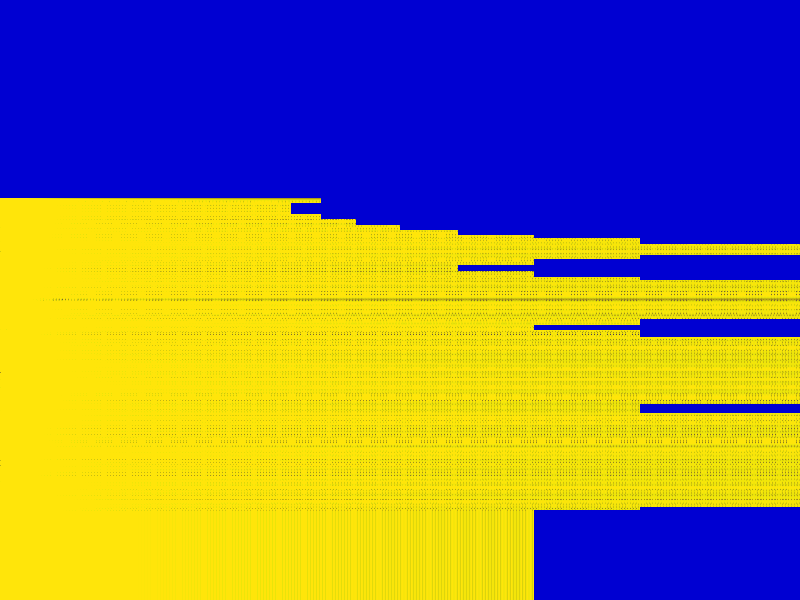

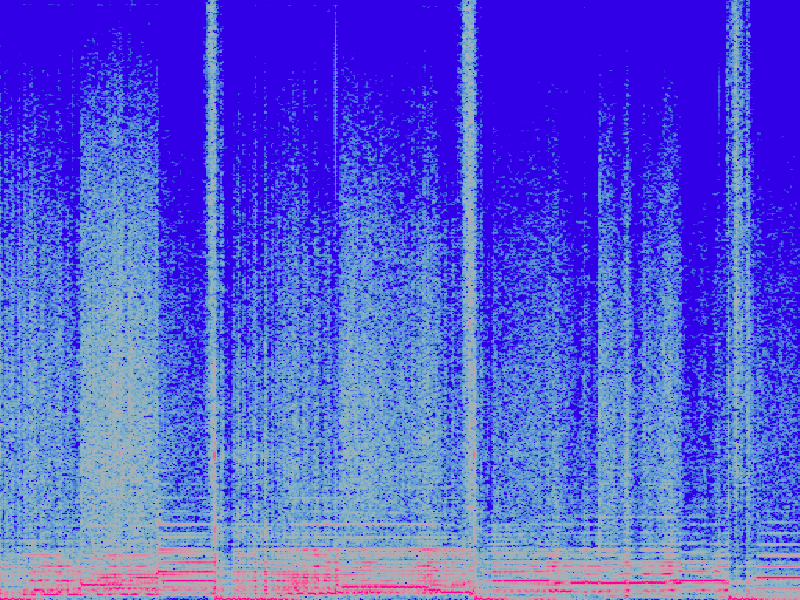

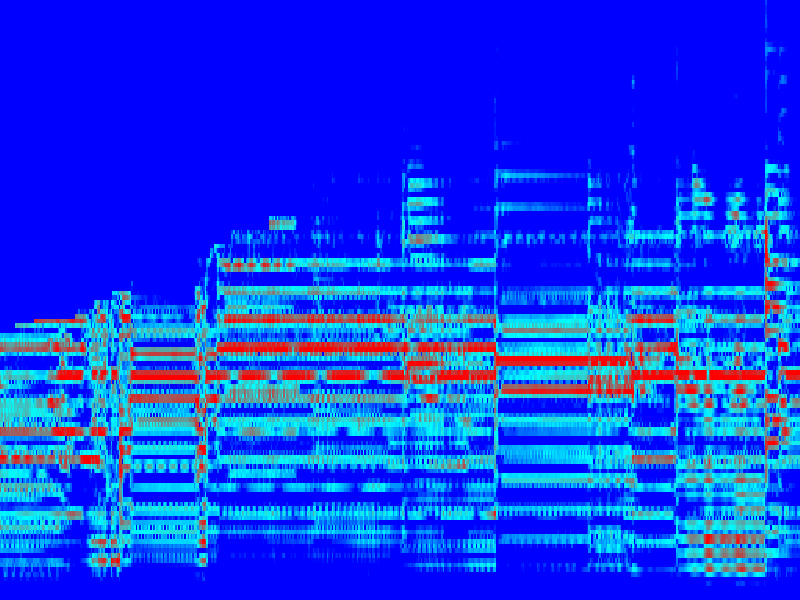

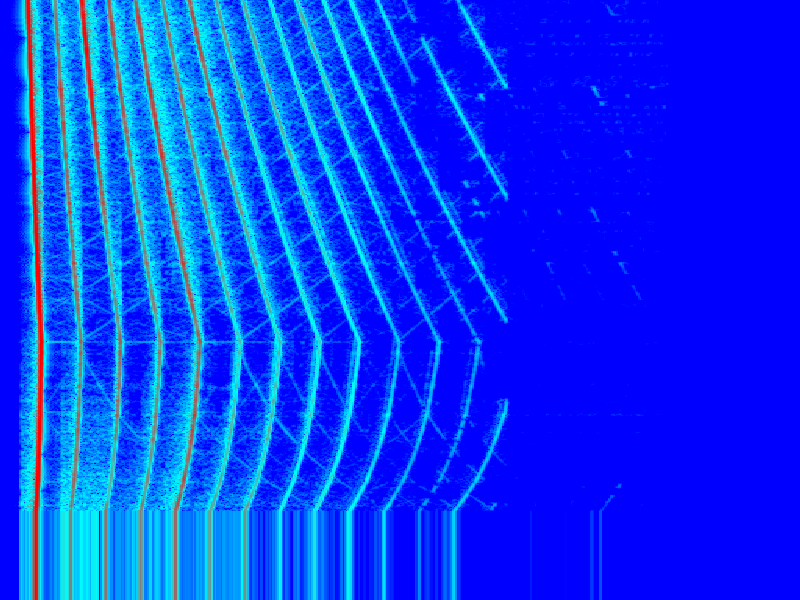

Gallery

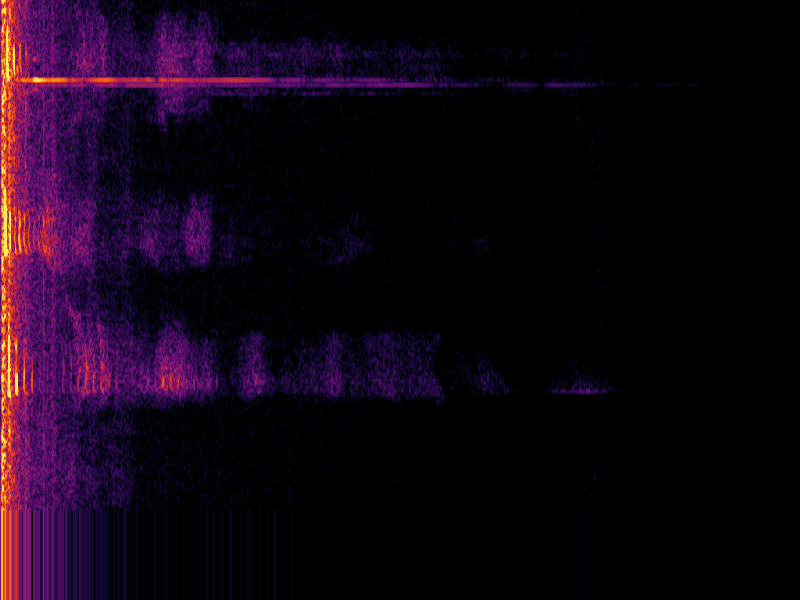

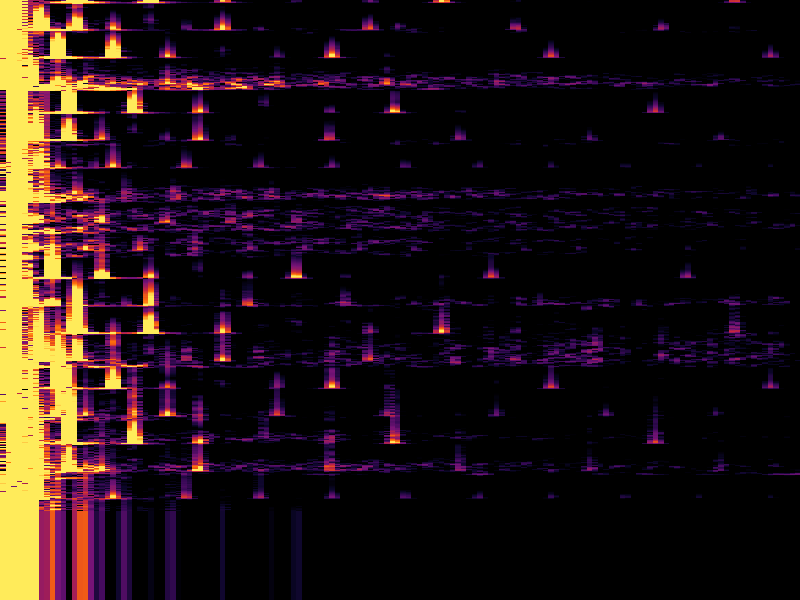

sgram_1762851204.png	sgram_1762853901.png	sgram_1766014547.png

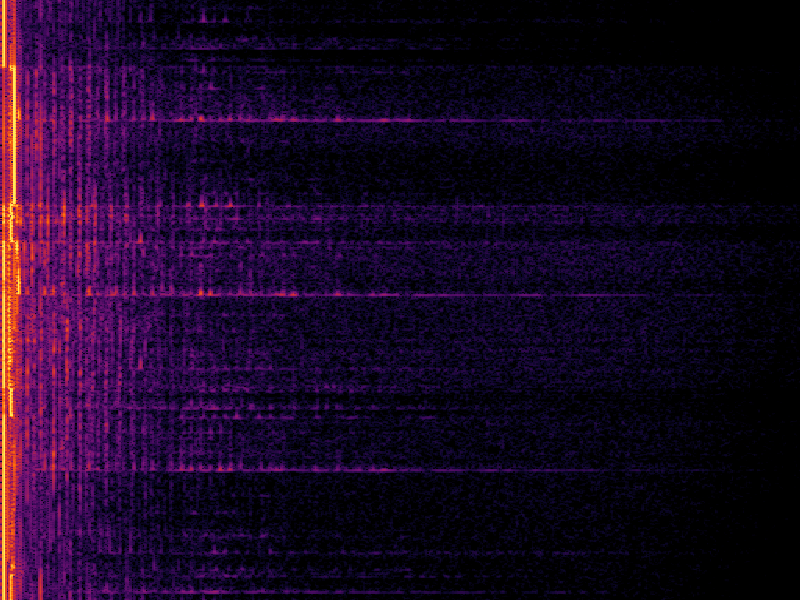

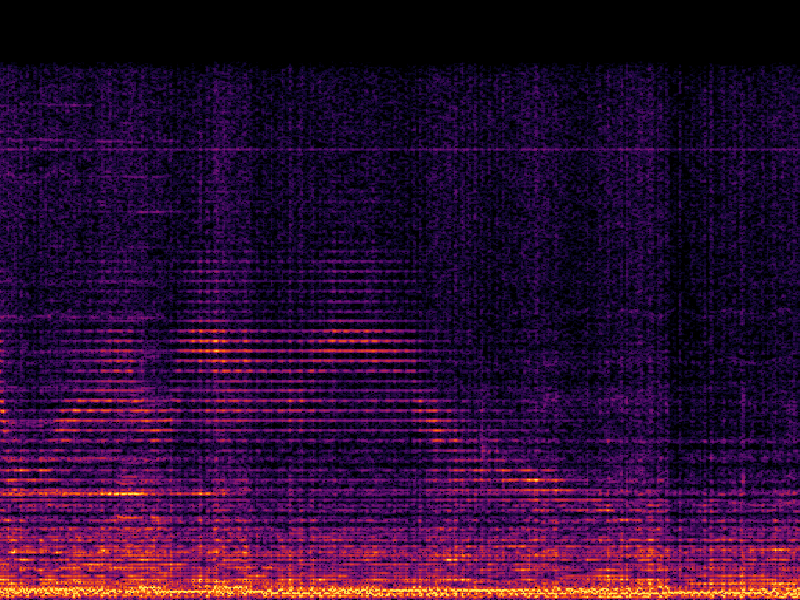

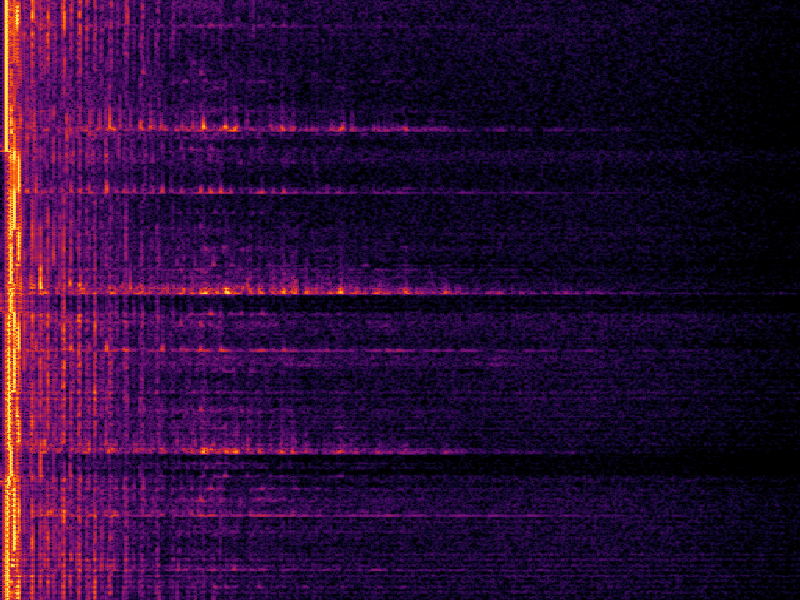

sgram_1766015161.png	sgram_1766015168.png	sgram_1766015364.png

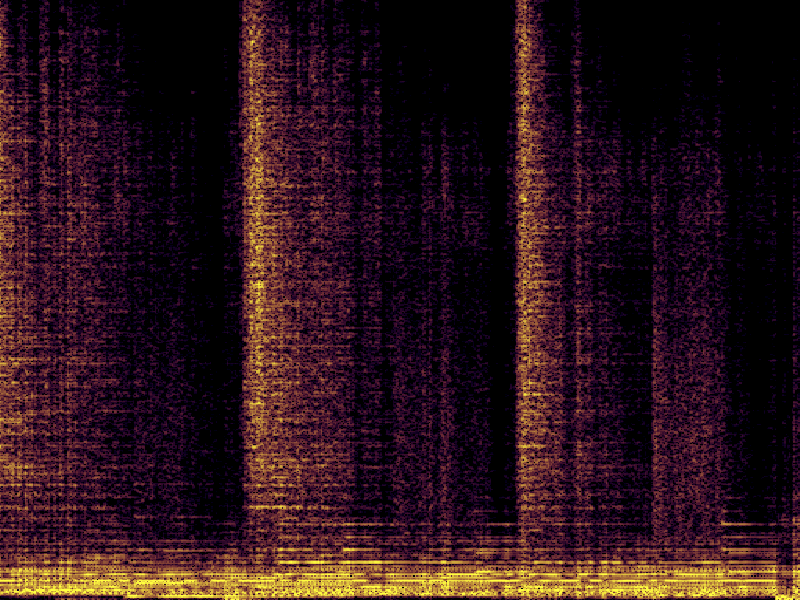

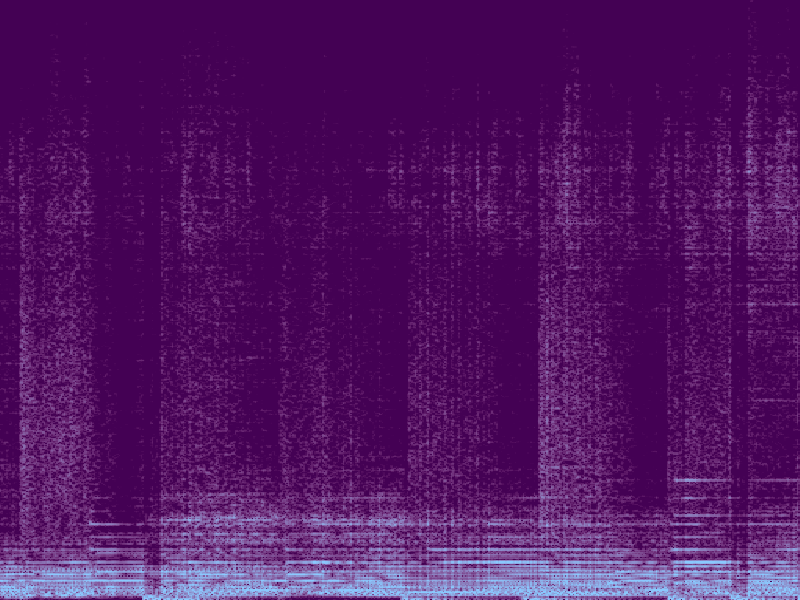

sgram_1766100795.png	sgram_1766100805.png	sgram_1766100807.png

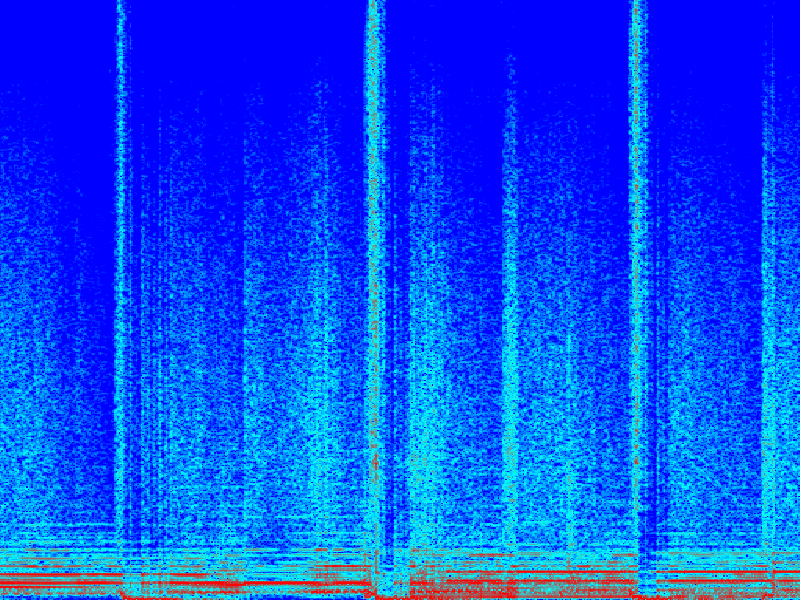

sgram_1766100816.png	sgram_1766100821.png	sgram_1766100825.png

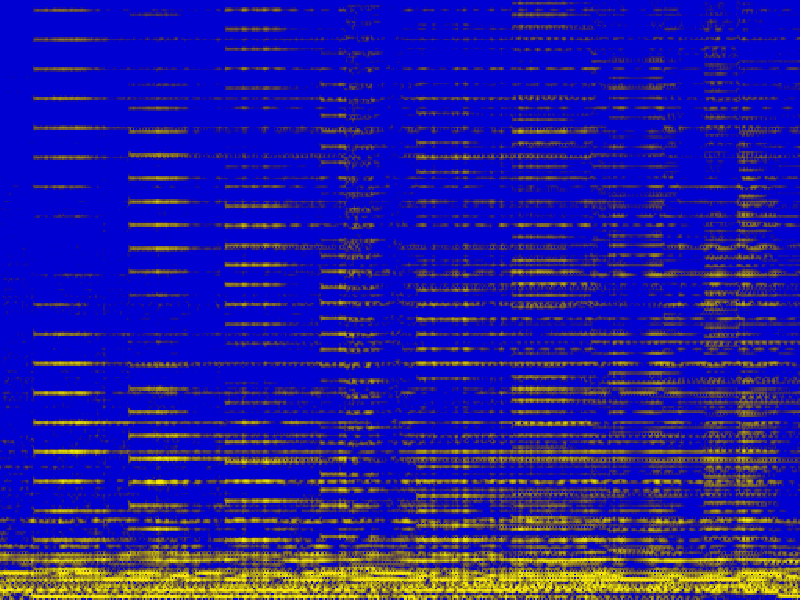

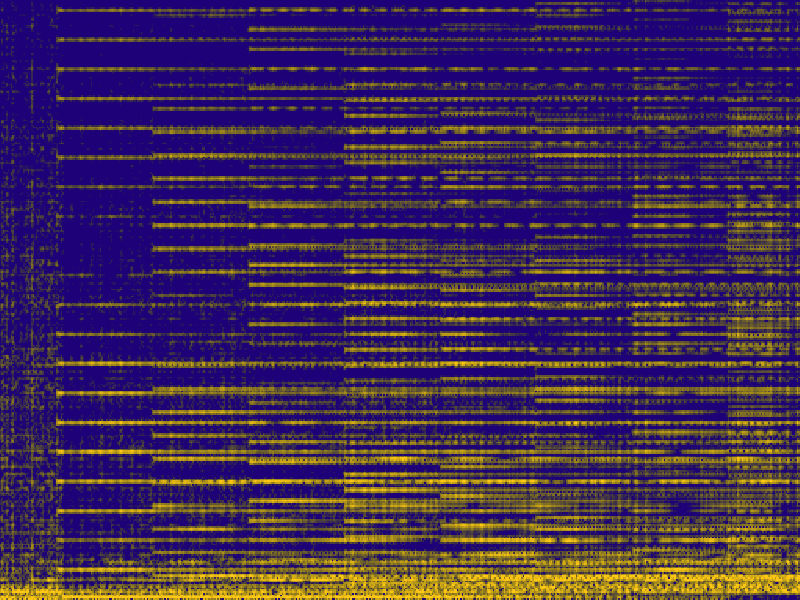

sgram_1766100832.png	sgram_1766103544.png	sgram_1766103555.png

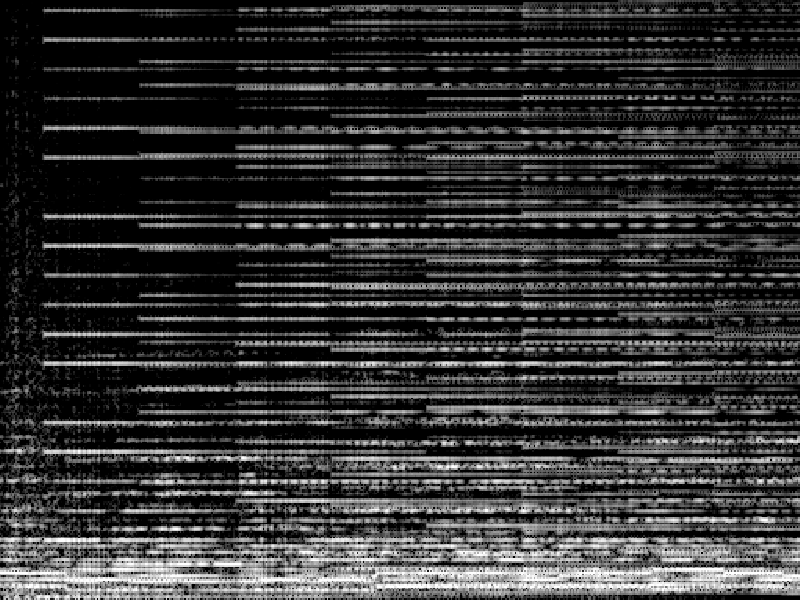

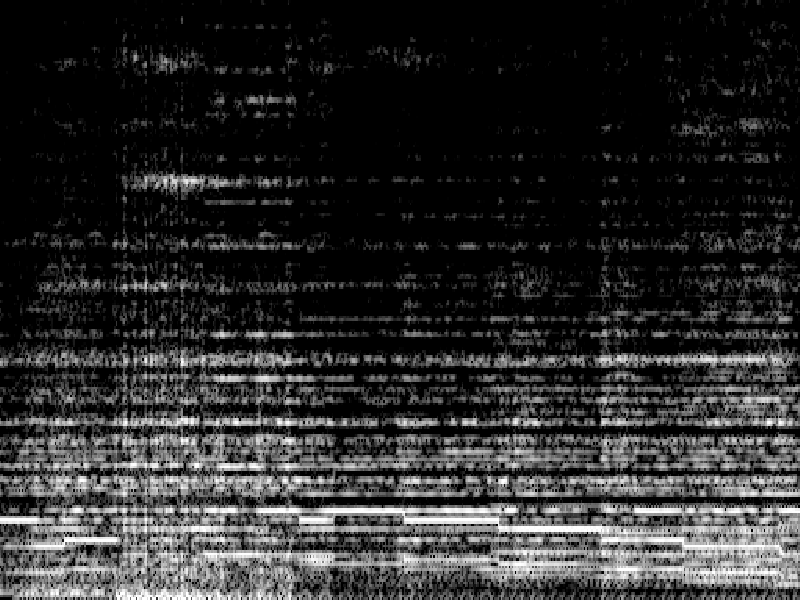

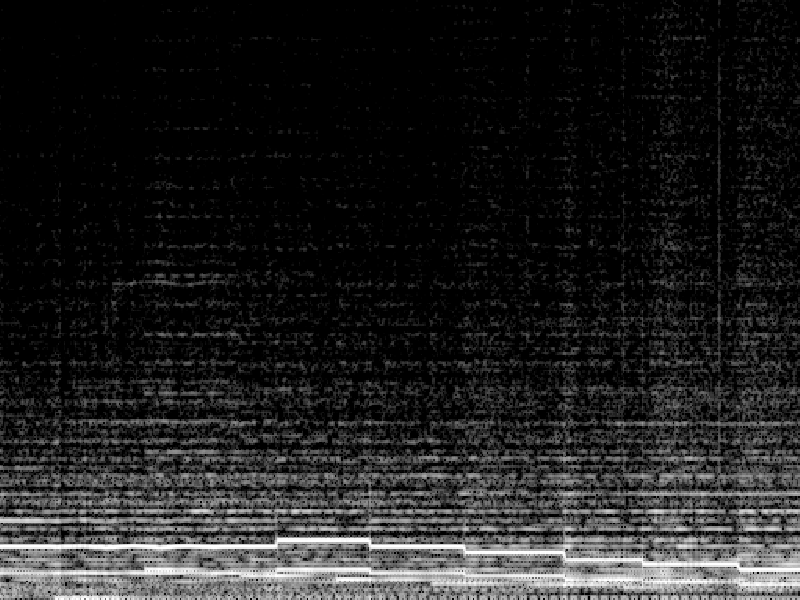

sgram_1766103596.png	sgram_1766103628.png	sgram_1766103664.png

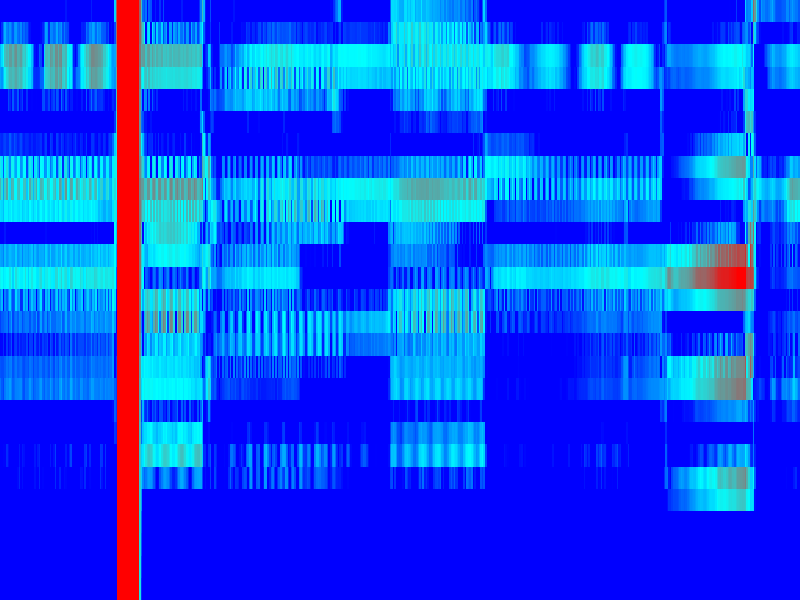

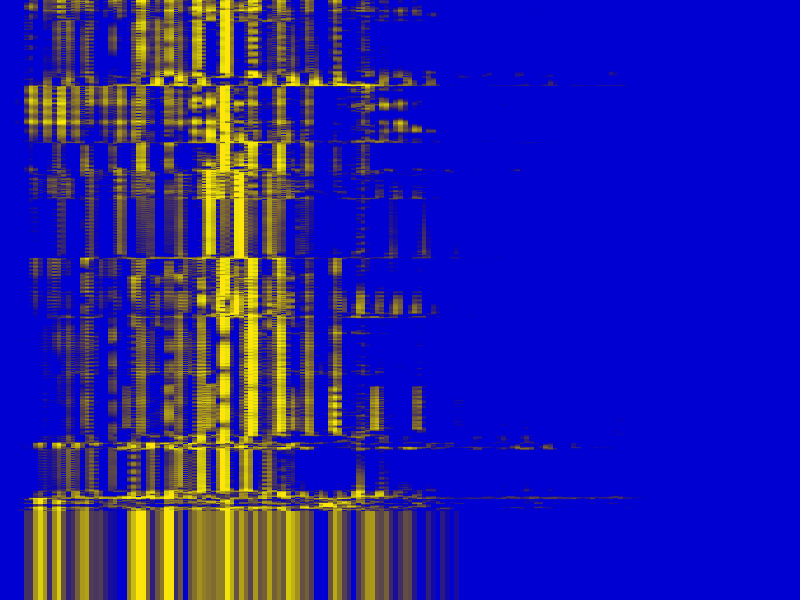

sgram_1766107677.png	sgram_1766107689.png	sgram_1766107697.png

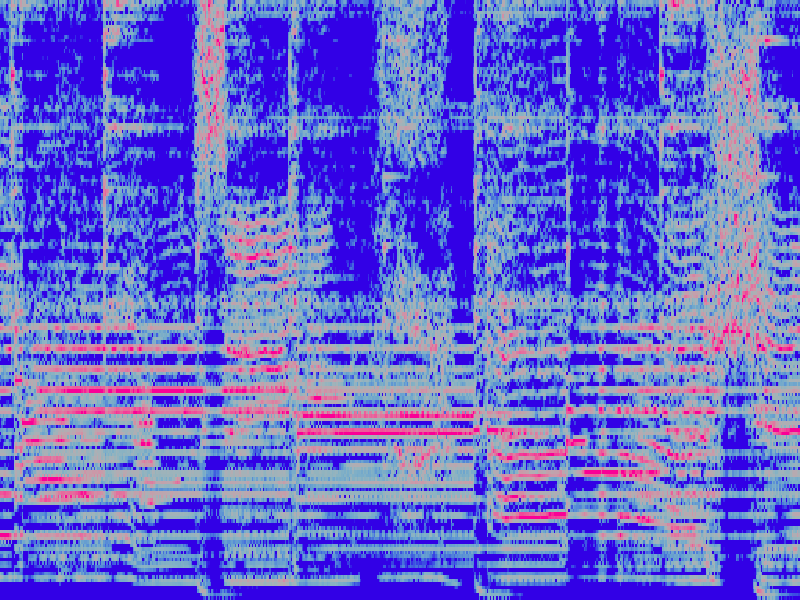

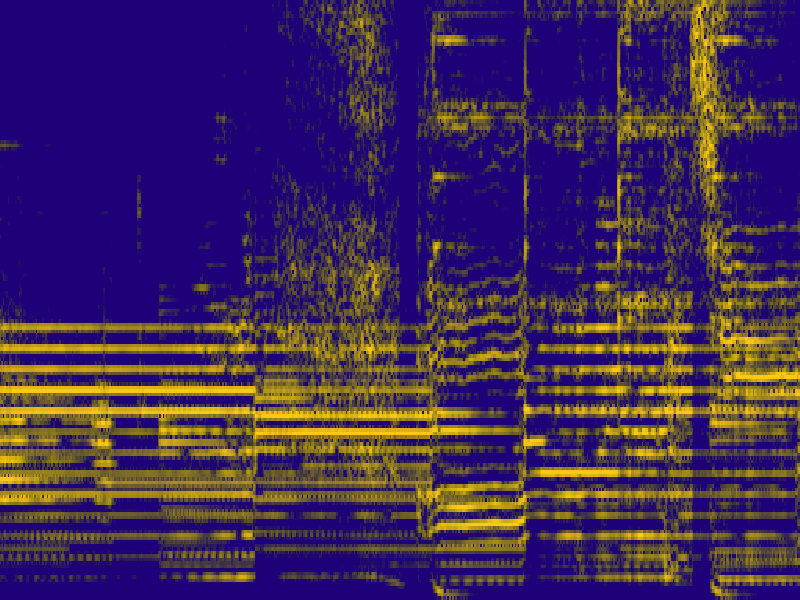

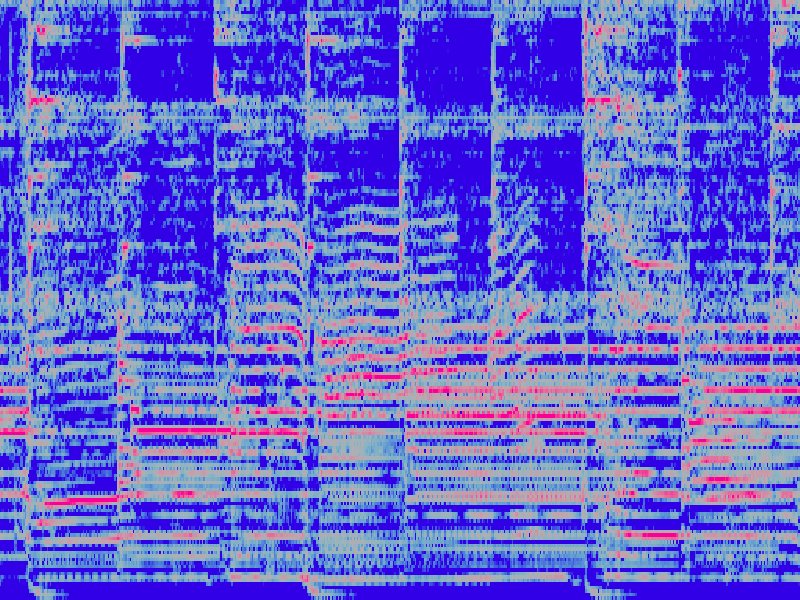

sgram_1766107701.png	sgram_1766107706.png	sgram_1766107708.png

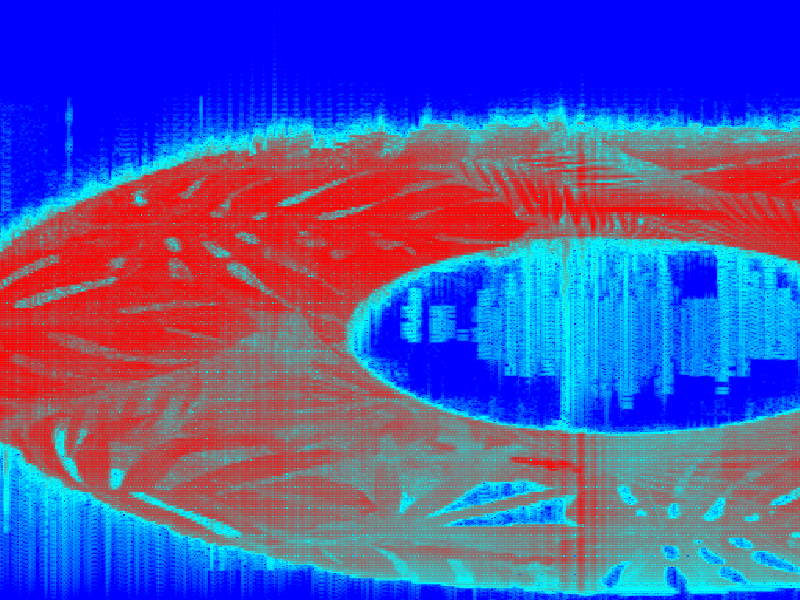

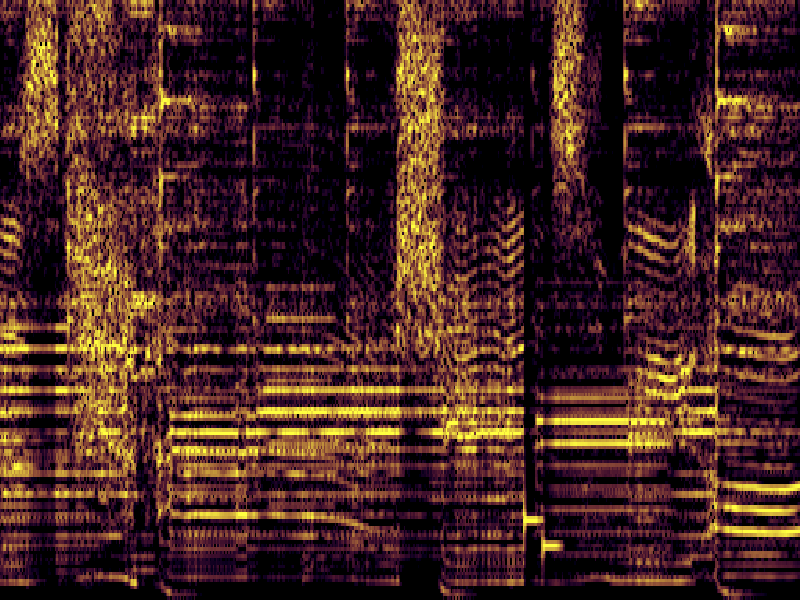

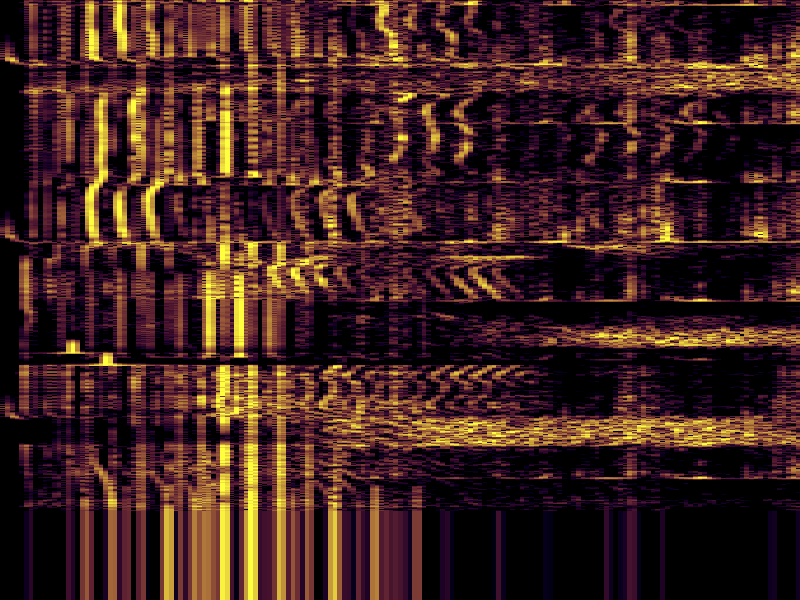

sgram_1766107711.png	sgram_1766107712.png	sgram_1766107782.png

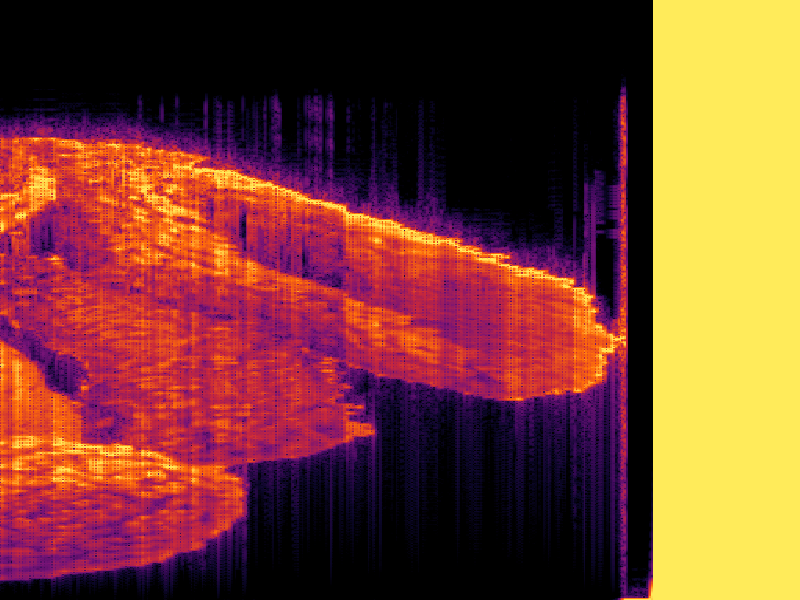

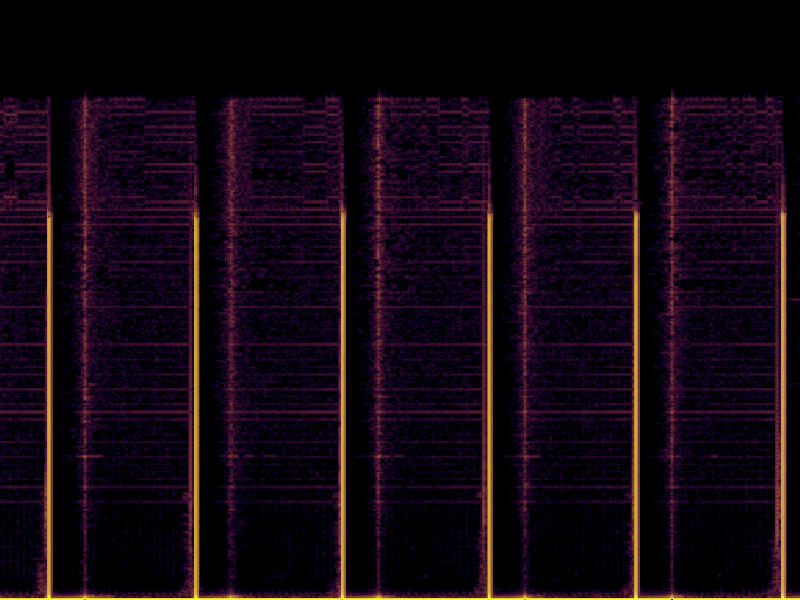

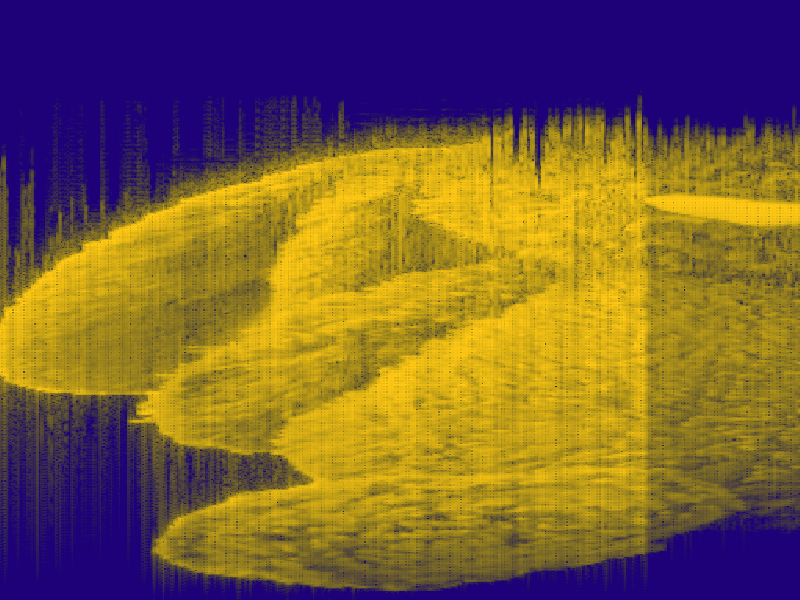

sgram_1766107803.png	sgram_1766107807.png	sgram_1766107947.png

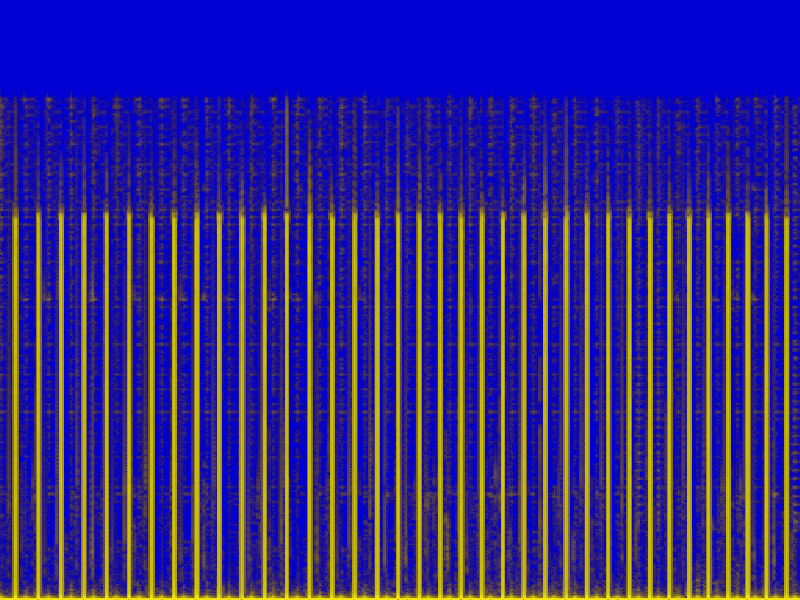

sgram_1766107961.png	sgram_1766107987.png	sgram_1766107993.png

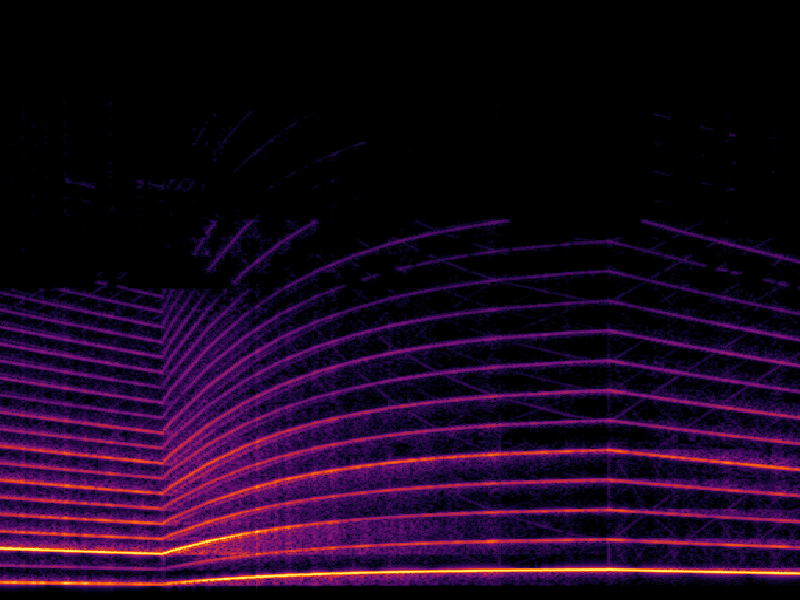

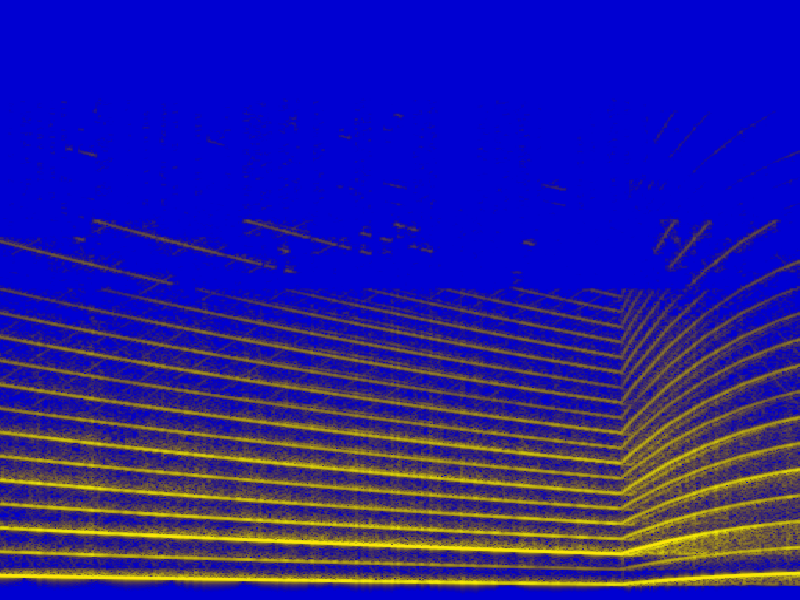

sgram_1766107995.png	sgram_1766108001.png
