Using FusionCharts with VB.NET (ASP.NET) > Plotting data from a database

In this section, we'll show you how to use FusionCharts and ASP.NET to plot charts from data contained in a database. We'll create a pie chart to show "Production by Factory" using:

dataXML method first.
Thereafter, we'll convert this chart to use dataURL method.

For the sake of ease, we'll use an Access Database. The database is present in Download Package > Code > VBNET > DB folder. You can, however, use any database with FusionCharts including MS SQL, Oracle, MySQL etc.

Before you go further with this page, we recommend you to please see the previous section "Basic Examples" as we start off from concepts explained in that page.

The code examples contained in this page are present in Download Package > Code > VBNET > DBExample folder. The Access database is present in Download Package > Code > VBNET > DB.

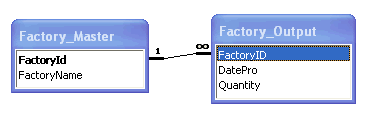

Before we code the ASP.NET pages to retrieve data, let's quickly have a look at the database structure.

The database contains just 2 tables:

Factory_Master: To store the name and id of each factory
Factory_Output: To store the number of units produced by each factory for a given date.

For demonstration, we've fed some dummy data in the database. Let's now shift our attention to the ASP.NET page that will interact with the database, fetch data and then render a chart.

The ASP.NET page for dataXML method example is named as BasicDBExample.aspx (in DBExample folder). It contains the following code:

<%@ Page Language="VB" AutoEventWireup="false" CodeFile="BasicDBExample.aspx.vb" Inherits="DBExample_BasicDBExample" %>

<HTML>
  <HEAD>
    <TITLE> FusionCharts Free - Database Example </TITLE>
    <%
    'You need to include the following JS file, if you intend to embed the chart using JavaScript.
    %>
    <SCRIPT LANGUAGE="Javascript" SRC="../FusionCharts/FusionCharts.js"></SCRIPT>
  </HEAD>

In the above code, we have included FusionCharts.js file to render chart through javascript. Then we have called CreateChart() function which is contained in the code behind file, BasicDBExample.aspx.vb. Let's take a look at the code behind file:

Imports DataConnection
Imports InfoSoftGlobal
Partial Class DBExample_BasicDBExample
Inherits System.Web.UI.Page

  Public Function CreateChart() As String
    'In this example, we show how to connect FusionCharts to a database.
    'For the sake of ease, we've used an Access database which is present in
    '../App_Data/FactoryDB.mdb. It just contains two tables, which are linked to each
    'other.

    'Database Objects - Initialization
    Dim oRs As DbConn, strQuery As String
    'strXML will be used to store the entire XML document generated
    Dim strXML As String

'Generate the graph element
strXML = "<graph caption='Factory Output report' subCaption='By Quantity' decimalPrecision='0' showNames='1' numberSuffix=' Units' pieSliceDepth='30' formatNumberScale='0'>"

    'Iterate through each factory
    strQuery = "select * from Factory_Master"
    oRs = New DbConn(strQuery)
    While oRs.ReadData.Read()
      'Now create second recordset to get details for this factory
      strQuery = "select sum(Quantity) as TotOutput from Factory_Output where FactoryId=" &       oRs.ReadData("FactoryId").ToString()

      Dim oRs2 As New DbConn(strQuery)
      oRs2.ReadData.Read()
      'Generate <set name='..' value='..' />
      strXML = strXML & "<set name='" & oRs.ReadData("FactoryName").ToString() & "' value='" &       oRs2.ReadData("TotOutput").ToString() & "' />"
      'Close recordset
      oRs2.ReadData.Close()
    End While
    oRs.ReadData.Close()
    'Finally, close <graph> element
    strXML = strXML & "</graph>"

    'Create the chart - Pie 3D Chart with data from strXML
    Return FusionCharts.RenderChart("../FusionCharts/FCF_Pie3D.swf", "", strXML, "FactorySum", "650", "450", False, False)
    End Function
  End Class

The following actions are taking place in this code:

We first include DataConnection and InfoSoftGlobal namespace. DataConnection namespace is contained within DataConn VB.NET class inside App_Code folder of Download pack. It contains the connection parameters to connect to Access database. And InfoSoftGlobal namespace is from FusionCharts.dll file in bin directory.
We declare variables strQuery to store SQL query that fetches data from database and strXML to store XML data.
Thereafter, we generate the XML data document by iterating through the recordset and store it in strXML variable.
Finally, we render the chart using RenderChart() method and pass strXML as dataXML.

When you now run the code, you'll get an output as under:

Let's now convert this example to use dataURL method. As previously explained, in dataURL mode, you need two pages:

Chart Container Page - The page which embeds the HTML code to render the chart. This page also tells the chart where to load the data from. We'll name this page as Default.aspx.
Data Provider Page - This page provides the XML data to the chart. We'll name this page as PieData.aspx.

The pages in this example are contained in Download Package > Code > CNET > DB_dataURL folder.

Default.aspx contains the following code to render the chart:

<%@ Page Language="VB" %>
<%@ Import Namespace="InfoSoftGlobal" %>

<script runat="server">
</script>

<HTML>
  <HEAD>
    <TITLE>
      FusionCharts Free - dataURL and Database Example
    </TITLE>
    <%
      'You need to include the following JS file, if you intend to embed the chart using JavaScript.
    %>
    <SCRIPT LANGUAGE="Javascript" SRC="../FusionCharts/FusionCharts.js"></SCRIPT>
  </HEAD>

  <BODY>

  <%
      'In this example, we show how to connect FusionCharts to a database
      'using dataURL method. In our other examples, we've used dataXML method
      'where the XML is generated in the same page as chart. Here, the XML data
      'for the chart would be generated in PieData.aspx.

      'For the sake of ease, we've used an Access database which is present in
      '../App_Data/FactoryDB.mdb. It just contains two tables, which are linked to each
      'other.

      'Variable to contain dataURL
      Dim strDataURL as string
      'the ASP.NET script in piedata.aspx interacts with the database,
      'converts the data into proper XML form and finally
      'relays XML data document to the chart
      strDataURL = "PieData.aspx"

      'Create the chart - Pie 3D Chart with dataURL as strDataURL
      Response.Write(FusionCharts.RenderChart("../FusionCharts/FCF_Pie3D.swf", strDataURL, "", "FactorySum", "650", "450", False, False))

%>

</BODY>
</HTML>

In the above code, we:

Include InfoSoftGlobal namespace and FusionCharts.js JavaScript class.
Create the dataURL string and store it in strDataURL variable.
Finally, we render the chart using RenderChart() method and set dataURL as strDataURL.

PieData.aspx contains the following code to output XML Data:

<%@ Page Language="VB" Debug="true" %>
<%@ Import Namespace="DataConnection" %>

      'For the sake of ease, we've used an Access database which is present in
      '../App_Data/FactoryDB.mdb. It just contains two tables, which are linked to each
      'other.

      'Database Objects - Initialization
      Dim oRs As DbConn, strQuery As String
      'strXML will be used to store the entire XML document generated
      Dim strXML As String

      'Iterate through each factory
      strQuery = "select * from Factory_Master"
      oRs = New DbConn(strQuery)

      While oRs.ReadData.Read()
        'Now create second recordset to get details for this factory
        strQuery = "select sum(Quantity) as TotOutput from Factory_Output where FactoryId=" & oRs.ReadData("FactoryId").ToString()

        Dim oRs2 As New DbConn(strQuery)
        oRs2.ReadData.Read()
        'Generate <set name='..' value='..'/>
        strXML = strXML & "<set name='" & oRs.ReadData("FactoryName").ToString() & "' value='" & oRs2.ReadData("TotOutput").ToString() & "' />"
      'Close recordset
      oRs2.ReadData.Close()

    End While
    oRs.ReadData.Close()
    'Finally, close <graph> element
    strXML = strXML & "</graph>"

'Set Proper output content-type
Response.ContentType = "text/xml"

    'Just write out the XML data
    'NOTE THAT THIS PAGE DOESN'T CONTAIN ANY HTML TAG, WHATSOEVER
    Response.Write(strXML)
   End Sub
</script>

In the above page:

Include DataConnection Namespace to fetch data from database.
The result is stored it in strXML variable.
Finally, we write this data to output stream without any HTML tags.

When you view this page, you'll get the same output as before.

We have used DataConnection Namespace in the above code. DataConnection is the Namespace within DbConn.vb class inside App_Code folder of the Sample Database Demo projects. Using this class we establish connection to our MS Access database with ADO.NET component. Let's go through the lines of code inside this class:

Imports Microsoft.VisualBasic
Imports System.Data.Odbc
Imports System.Data
Imports System.Web

Namespace DataConnection
  Public Class DbConn
    Public connection As OdbcConnection
    Public ReadData As OdbcDataReader
    Public aCommand As OdbcCommand

    Public Sub New(ByVal strQuery As String)
      Dim ConnectionString As String
      ' Setup Connection string For Access DataBase
      ConnectionString = "Driver={Microsoft Access Driver (*.mdb)};Dbq=" &       HttpContext.Current.Server.MapPath("..\App_Data\FactoryDB.mdb")
      ' We are specifying the path of the MS Access database here. If your Database is at a
      ' different location, you need to specify it here.

      ' Setup Connection string For SQL Server DataBase; to connect to SQL Server Database,
      ' activate the line below and deactivate the line to connect to MS Access Database
      ' ConnectionString = "Driver={SQL Server};;uid=<your SQL Server Database user name>;pwd=<your SQL Server Database password>;server=<Server Name>;database=<Database Name>"

' Creating OdbcConnection Oject
connection = New OdbcConnection()

      ' Setting Conection String
      connection.ConnectionString = ConnectionString
      ' Open Connection
      connection.Open()
      GetReader(strQuery)

    End Sub
    ' Create an instance dataReader
    ' Return type object of OdbcDataReader

    Public Sub GetReader(ByVal strQuery As String)

' Create a Command object
aCommand = New OdbcCommand(strQuery, connection)

' Create data reader object using strQuery string
ReadData = aCommand.ExecuteReader(CommandBehavior.CloseConnection)

End Sub

End Class
End Namespace

What it does:

Set up Connection to sample MS Access Database.
The code to connect to SQL Server Database is also given in comment form. To connect to SQL Server you have activate the corresponding code.
It accepts SQL Query, executes it and returns the result.
