1) Problem 14 on page 93 of the textbook


Let Xij be the number of liters of input i used to make product j where the inputs and products are numbered as shown below:


Input Product 1 Reformate Regular Gasoline 2 FCG Premium Gasoline 3 ISO   4 POL   5 MTB   6 BUT

Note that the number of liters of product produced is x1j + x2j + x3j +x4j + x5j + x6j.

One liter of regular gasoline sells for 29.49 cents, but it costs (1.5)(8.5) cents to remove the lead from it. Thus, a liter of regular gasoline a net value of 16.74 cents. Likewise, a liter of premium gasoline has a net value of 16.68 cents.



Thus, the objective function is:

maximize 16.74 x11 + 18.68 x12 + 16.74 x21 + 18.68 x22 + 16.74 x31

+ 18.68 x32 + 16.74 x41 + 18.68 x42 + 16.74 x51 + 18.68 x52

+ 16.74 x61 + 18.68 x62


The constraints are:

FCG limit1: - 0.38 x11 + 0.62 x21 - 0.38 x31 - 0.38 x41 - 0.38 x51 - 0.38 x61 <= 0

FCG limit2: - 0.38 x12 + 0.62 x22 - 0.38 x32 - 0.38 x42 - 0.38 x52- 0.38 x62 <= 0

availability1: x11 + x12 <= 15572

availability2: x21 + x22 <= 15434

availability3: x31 + x32 <= 6709

availability4: x41 + x42 <= 1190

availability5: x51 + x52 <= 748

meet demand regular: x11 + x21 + x31 + x41 + x51 + x61 >= 9800

meet demand perimum: x12 + x22 + x32 + x42 + x52 + x62 >= 30000

regular ron: 8.9 x11 + 3.2 x21 - 3.9 x31 + 7 x41 + 27 x51 + 8 x61 >= 0

premium ron: 2.9 x12 - 2.8 x22 - 9.9 x32 + x42 + 21 x52 + 2 x62 >= 0

rvp requirement1: - 13.52 x11 - 11.4 x21 + 8.34 x31 - 6.67 x41 -7.73 x51 + 145.81 x61 = 0

rvp requirement2: - 13.52 x12 - 11.4 x22 + 8.34 x32 - 6.67 x42 -7.73 x52+ 145.81 x62 = 0

astm70 requirement1: - 15 x11 + 47 x21 + 97 x31 - 3 x41 + 88 x51 + 120 x61 >= 0

astm70 requirement2: - 15 x12 + 47 x22 + 97 x32 - 3 x42 + 88 x52 + 120 x62 >= 0

astm130 requirement1: - 4 x11 + 53 x21 + 50 x31 - 43 x41 + 50 x51 + 50 x61 >= 0

astm130 requirement2: - 4 x12 + 53 x22 + 50 x32 - 43 x42 + 50 x52 + 50 x62 >= 0

xij >= 0 for all i and j


Here  is the solution from CPLEX;

Primal - Optimal: Objective = 7.6580822735e+05
Solution time = 0.00 sec. Iterations = 11 (9)


Variable Name	Solution Value
x11	1265.859769
x12	14306.140231
x21	3192.706296
x22	12241.293704
x31	3956.295964
x32	2752.704036
x41	1190.000000
x52	748.000000
x61	195.137971
x62	2165.792830

All other variables in the range 1-12 are zero.

2) Problem 11 on page 98

Let PA be the number of pounds of product A produced.
Let PB be the number of pounds of product B produced.

Note that this includes pounds of B produced directly from the raw material and from product A.

Let PC be the number of pounds of product C produced.

Let ABC be the number of pounds of product A converted to products B and C by the process that costs $3. Note that one lb of ABC yields 0.6 lbs of product B and 0.4 lbs of product C.

Let BC be the number of pounds of product B converted to product C by the process that costs $2. Note that one lb of BC yields 0.8 lbs of product C.

Let SA, SB and SC be the amount (in lbs) of products A, B and C sold respectively.

A valid LP formulation is:


maximize revenue -cost	(net profit)
subject to
cost = 5 * (PA + PB) +3* ABC + 2 * BC
revenue = 10 * SA + 12 * SB + 20 * SC
SA <= PA - ABC	(Can't sell more A than is produced)
SB <= PB + 0.6 * ABC - BC	(Can't sell more B than is produced)
PC = 0.4 * ABC + 0.8 * BC	(lbs of C produced)
SC <= PC	(Can't sell more C than is produced)
SA <= 30	(Maximum lbs of A that can be sold)
SB <= 30	(Maximum lbs of B that can be sold)
SC <= 30	(Maximum lbs of C that can be sold)
All variables >= 0





An optimal solution is show below.

SA = 30
SB = 30
SC = 30
PA = 30
PB = 67.5
PC = 30
ABC = 0
BC = 37.5
revenue - cost = $697.5


3) #5 on Page 104

Let Ti be the number of trucks produce in month i.
Let Ci be the number of cars produced in month i.
Let ITi be the of trucks in inventory at the end of month i.
Let CTi be the number of cars inventory at the end of month i.
Let Si be the tons of steel used in month i

The objective function has two components: the cost of steel and the holding cost.

Min 400 S1 + 600 S2 + 150 (IT1 + IT2 + IC1 + IC2)

The first set of constraints are standard inventory balance constraints which say that the inventory of a product at the end of a period is the amount produced in the period plus the inventory from the previous period minus the demand during the period.

IT1 = T1 + 100 - 400
IT2 = T2 + IT1 - 300
IC1 = C1 + 200 - 800
IC2 = C2 + IC1 - 300

Since we require all variables to be non-negative, we ensure that the demand is met every period. Next, we have constraints on the number of vehicles that can be produced each month.

T1 + C1 <= 1000
T2 + C2 <= 1000

Next, we have a set of constraints on the amount of steel used.

S1 >= 2 T1 + C1
S2 >= 2 T2 + C2
S1 <= 1500
S2 <= 1500

Finally , we the constraints enforcing the minimum mpg average.

(10 T1 + 20 C1) / (T1 + C1) >= 16 -> 4 C1 - 6 T1 >= 0

(10 T2 + 20 C2) / (T2 + C2) >= 16 -> 4 C2 - 6 T2 >= 0

Here is a CPLEX formulation of the problem:

Log started (V6.5.3) Sun Oct 1 14:02:27 2000
Problem 'cartruck.lp' read.
Read time = 0.00 sec.
Minimize
obj: 400 S1 + 600 S2 + 150 IT1 + 150 IT2 + 150 IC1 + 150 IC2
Subject To
c1: IT1 - T1 = -300
c2: - IT1 + IT2 - T2 = -300
c3: IC1 - C1 = -600
c4: - IC1 + IC2 - C2 = -300
c5: T1 + C1 <= 1000
c6: T2 + C2 <= 1000
c7: S1 - 2 T1 - C1 >= 0
c8: S2 - 2 T2 - C2 >= 0
c9: S1 <= 1500
c10: S2 <= 1500
c11: - 6 T1 + 4 C1 >= 0
c12: - 6 T2 + 4 C2 >= 0
Bounds
All variables are >= 0.
Tried aggregator 1 time.
LP Presolve eliminated 2 rows and 0 columns.
Aggregator did 2 substitutions.
Reduced LP has 8 rows, 8 columns, and 20 nonzeros.
Presolve time = 0.00 sec.

Iteration log . . .
Iteration: 1 Infeasibility = 2100.000000
Switched to devex.

Primal - Optimal: Objective = 9.9500000000e+05
Solution time = 0.00 sec. Iterations = 5 (5)


Variable Name	Solution Value
S1	1400.000000
S2	700.000000
IT1	100.000000
IC1	0.000000
T1	400.000000
T2	200.000000
C1	600.000000
C2	300.000000

All other variables in the range 1-10 are zero.


Thus, an optimal solution is produce 400 trucks and 600 cars in month 1 and 300 trucks and 200 cars in month 2.

3) Problem 4 on page 111 of the textbook.

Let St be the number of bushels of wheat sold during month t.

Let Bt be the number of bushels of wheat bought during month t.

Let It be the number of bushels of wheat in inventory at the end of month t (after all buying and selling) during month t.
- PP_t B_t
Let Pt be the profit in dollars for month t.

Denote by SPt and PPt the selling and buying price respectively in dollars per bushel for month t. For example, SP1 = 3 and PP1 = 8.

A correct formulation is

maximize P₁ + P₂ + P₃ + P₄ + P₅ + P₆ + P₇ + P₈ + P₉ + P₁₀
s.t.

I0 = 6000
It = It-1 + Bt - St	for t = 1,2,...,10	Inventory Balance
It <= 20,000	for t = 1,2,...,10	Maximum Storage Capacity
St <= It-1	for t = 1,2,...,10	Can't sell more than is availalbe
Pt = SPt St - PPt Bt	for t = 1,2,...,10	Definition of profit.

The Pt are unrestricted in sign. All other variables are non-negative.

CPLEX Solution

Problem 'warehouse.lp' read.
Read time = 0.00 sec.
Maximize
obj: P0 + P1 + P2 + P3 + P4 + P5 + P6 + P7 + P8 + P9 + P10
Subject To
init_inventory: I0 = 6000
inventory1: - I0 + S1 - B1 + I1 = 0
inventory2: - I1 + S2 - B2 + I2 = 0
inventory3: - I2 + S3 - B3 + I3 = 0
inventory4: - I3 + S4 - B4 + I4 = 0
inventory5: - I4 + S5 - B5 + I5 = 0
inventory6: - I5 + S6 - B6 + I6 = 0
inventory7: - I6 + S7 - B7 + I7 = 0
inventory8: - I7 + S8 - B8 + I8 = 0
inventory9: - I8 + S9 - B9 + I9 = 0
inventory10: - I9 + S10 - B10 + I10 = 0
capacity0: I0 <= 20000
capacity1: I1 <= 20000
capacity2: I2 <= 20000
capacity3: I3 <= 20000
capacity4: I4 <= 20000
capacity5: I5 <= 20000
capacity6: I6 <= 20000
capacity7: I7 <= 20000
capacity8: I8 <= 20000
capacity9: I9 <= 20000
capacity10: I10 <= 20000
availiblity1: - I0 + S1 <= 0
availiblity2: - I1 + S2 <= 0
availiblity3: - I2 + S3 <= 0
availiblity4: - I3 + S4 <= 0
availiblity5: - I4 + S5 <= 0
availiblity6: - I5 + S6 <= 0
availiblity7: - I6 + S7 <= 0
availiblity8: - I7 + S8 <= 0
availiblity9: - I8 + S9 <= 0
availiblity10: - I9 + S10 <= 0
profit0: P0 = 0
profit1: P1 - 3 S1 + 8 B1 = 0
profit2: P2 - 6 S2 + 8 B2 = 0
profit3: P3 - 7 S3 + 2 B3 = 0
profit4: P4 - S4 + 3 B4 = 0
profit5: P5 - 4 S5 + 4 B5 = 0
profit6: P6 - 5 S6 + 3 B6 = 0
profit7: P7 - 5 S7 + 3 B7 = 0
profit8: P8 - S8 + 2 B8 = 0
profit9: P9 - 3 S9 + 5 B9 = 0
profit10: P10 - 2 S10 + 5 B10 = 0
Bounds
All variables are >= 0.
Tried aggregator 1 time.
LP Presolve eliminated 17 rows and 9 columns.
Aggregator did 14 substitutions.
Reduced LP has 12 rows, 19 columns, and 42 nonzeros.
Presolve time = 0.00 sec.

Iteration log . . .
Iteration: 1 Scaled infeas = 0.000000
Switched to devex.
Iteration: 2 Objective = 42000.000000

Primal - Optimal: Objective = 1.4200000000e+05
Solution time = 0.00 sec. Iterations = 10 (1)


VariableName	SolutionValue
P3	2000.000000
P6	40000.000000
P7	100000.000000
I0	6000.000000
I1	6000.000000
I2	6000.000000
S3	6000.000000
B3	20000.000000
I3	20000.000000
I4	20000.000000
S5	20000.000000
B5	20000.000000
I5	20000.000000
S6	20000.000000
B6	20000.000000
I6	20000.000000
S7	20000.000000

All other variables in the range 1-42 are zero.


4) Problem 22 on page 116 of the textbook.

Let Xijk be the units of product 1 produced on machine i during month j and sold in month k. Let Yijk be the units of product 2 produced on machine i during month j and sold in month k.

A correct formulation is

Maximize 55 (X111 + X211) + 12 (X112 + X212 + X122 + X222) +
65 (Y111 + Y211) + 32 (Y112 + Y212 + Y122 + Y222)
s.t.

4 (X111 + X112) + 7 (Y111 + Y112) <= 500	(Machine 1 availability in month 1)
3 (X211 + X212) + 4 (Y211 + Y112) <= 500	(Machine 2 availability in month 1)
4 X122 + 7 Y122 <= 500	(Machine 1 availability in month 2)
3 X222 + 4 Y222 <= 500	(Machine 2 availability in month 2)
X111 + X211 <= 100	(Month 1 product 1 sales)
Y111 + Y211 <= 140	(Month 1 product 2 sales)
X112 + X212 + X122 <= 190	(Month 2 product 1 sales)
Y112 + Y212 + Y122 <= 130	(Month 2 product 1 sales)

All variables non-negative

CPLEX Solution:
Log started (V6.5.3) Sun Oct  1 14:12:51 2000


Problem 'temp.lp' read.
Read time =    0.00 sec.
Maximize
 obj: 55 X111 + 55 X211 + 12 X112 + 12 X212 + 12 X122 + 12 X222 + 65 Y111
 + 65 Y211 + 32 Y112 + 32 Y212 + 32 Y122 + 32 Y222
Subject To
 c1: 4 X111 + 4 X112 + 7 Y111 + 7 Y112 <= 500
 c2: 3 X211 + 3 X212 + 4 Y211 + 7 Y112 <= 500
 c3: 4 X122 + 7 Y122 <= 500
 c4: 3 X222 + 4 Y222 <= 500
 c5: X111 + X211 <= 100
 c6: Y111 + Y211 <= 140
 c7: X112 + X212 + X122 <= 190
 c8: Y112 + Y212 + Y122 <= 130
Bounds
 All variables are >= 0.
Tried aggregator 1 time.
LP Presolve eliminated 3 rows and 5 columns.
Reduced LP has 5 rows, 7 columns, and 13 nonzeros.
Presolve time =    0.00 sec.

Iteration log . . .
Iteration:     1    Objective     =         16285.000000

Primal - Optimal:  Objective =    2.4213571429e+04
Solution time =    0.00 sec.  Iterations = 5 (0)


Variable Name         Solution Value
X111                        100.000000
X122                        125.000000
Y111                         14.285714
Y211                        125.000000
Y212                        130.000000
Y222                        125.000000
All other variables in the range 1-12 are zero.

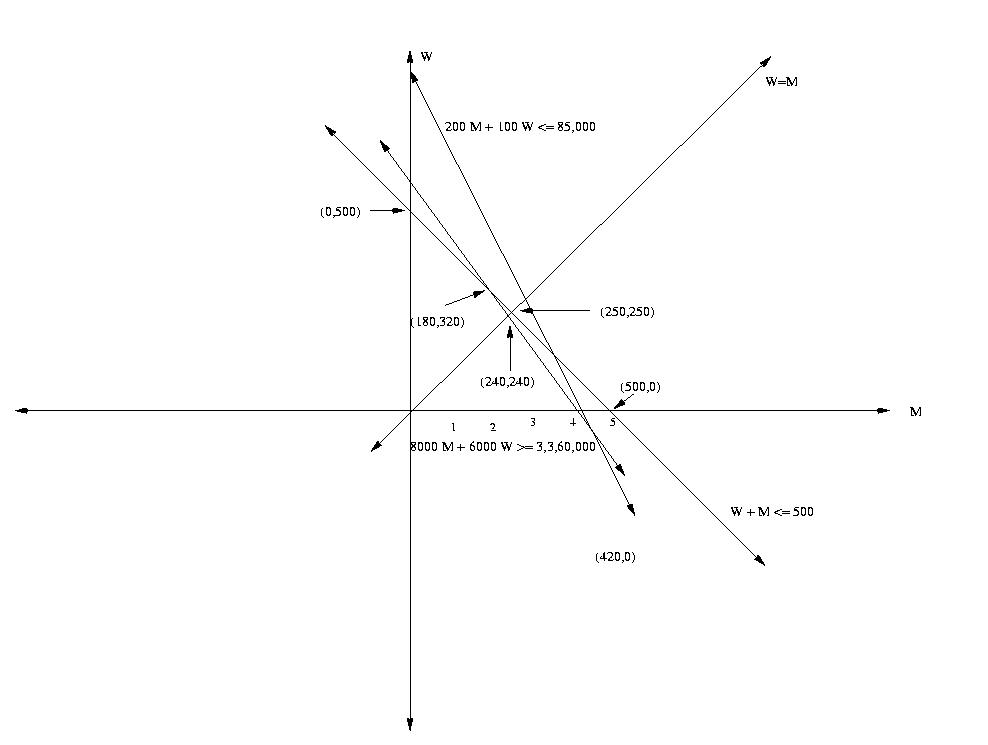

#6) Graphical Solution to the College Admissions Problem


yada yada

The optimal solution is 240 men and 240 women.


#7) Problem 6 page 64
Let x1 = acres of wheat planted and x2 = acres of corn planted.
A correct formulation is shown below.

max 200 x1 + 300 x2
st
 3 x1 + 2 x2 <= 100    Available laborers
 2 x1 + 4 x2 <= 120    Available fertiler
 x1 + x2 <= 45            Farmer Jane owns 45 acres of land
 x1 >= 0
 x2 >= 0

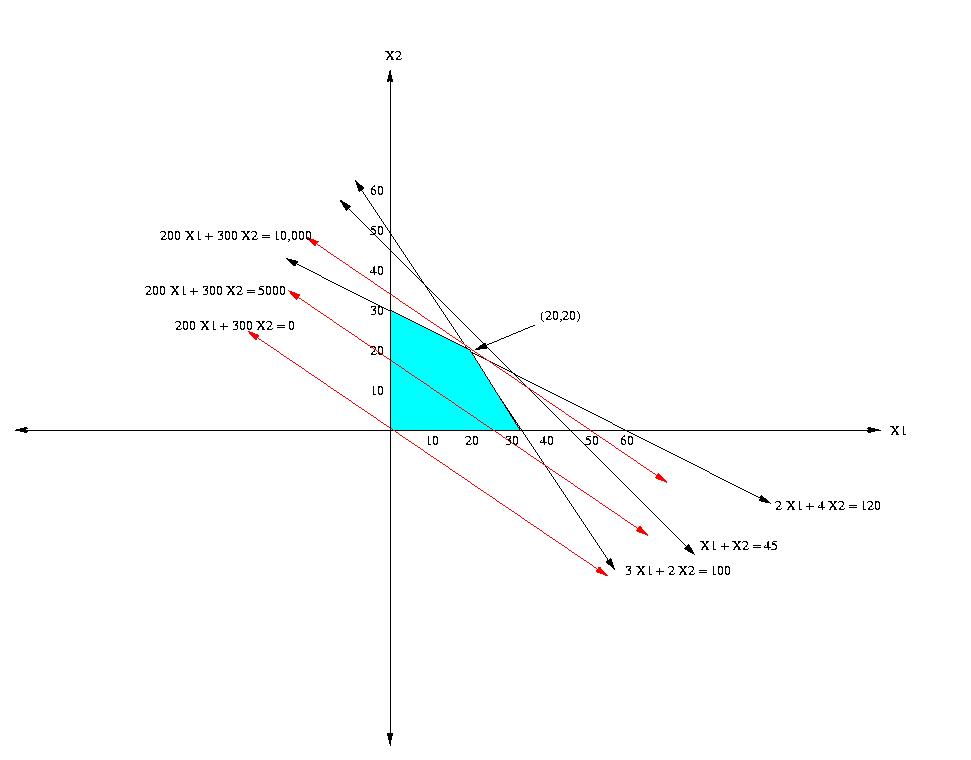

Graphical Solution

"Brute Force" Solution

Note that with the non-negativity there a total of 5 contraints giving 10 intersection points.

Constraints 1 and 2:

(3) x1 + (2) x2 = 100

(2) x1 + (4) x2 = 120

x1 = 20.000000, x2 = 20.000000

Feasible. Objective fuction value = 10000.000000.

Constraints 1 and 3:

(3) x1 + (2) x2 = 100

(1) x1 + (1) x2 = 45

x1 = 10.000000, x2 = 35.000000

Infeasible. Constraint 2 is not satisfied.

Constraints 1 and 4:

(3) x1 + (2) x2 = 100

(1) x1 + (0) x2 = 0

x1 = 0.000000, x2 = 50.000000

Infeasible. Constraint 2 is not satisfied.

Constraints 1 and 5:

(3) x1 + (2) x2 = 100

(0) x1 + (1) x2 = 0

x1 = 33.333333, x2 = 0.000000

Feasible. Objective fuction value = 6666.666667.

Constraints 2 and 3:

(2) x1 + (4) x2 = 120

(1) x1 + (1) x2 = 45

x1 = 30.000000, x2 = 15.000000

Infeasible. Constraint 1 is not satisfied.

Constraints 2 and 4:

(2) x1 + (4) x2 = 120

(1) x1 + (0) x2 = 0

x1 = 0.000000, x2 = 30.000000

Feasible. Objective fuction value = 9000.000000.

Constraints 2 and 5:

(2) x1 + (4) x2 = 120

(0) x1 + (1) x2 = 0

x1 = 60.000000, x2 = 0.000000

Infeasible. Constraint 1 is not satisfied.

Constraints 3 and 4:

(1) x1 + (1) x2 = 45

(1) x1 + (0) x2 = 0

x1 = 0.000000, x2 = 45.000000

Infeasible. Constraint 2 is not satisfied.

Constraints 3 and 5:

(1) x1 + (1) x2 = 45

(0) x1 + (1) x2 = 0

x1 = 45.000000, x2 = 0.000000

Infeasible. Constraint 1 is not satisfied.

Constraints 4 and 5:

(1) x1 + (0) x2 = 0

(0) x1 + (1) x2 = 0

x1 = 0.000000, x2 = 0.000000
Feasible. Objective fuction value = 0.000000.

This problem has a unique optimal solution at x1 = 20, x2 = 20.
The objective fuction value = 10000.000000.

LINDO Solution:

MAX 200 X1 + 300 X2

SUBJECT TO

2) 3 X1 + 2 X2 <= 100

3) 2 X1 + 4 X2 <= 120

4) X1 + X2 <= 45

END

LP OPTIMUM FOUND AT STEP 2

OBJECTIVE FUNCTION VALUE

1) 10000.0000

VARIABLE VALUE REDUCED COST

X1 20.000000 .000000

X2 20.000000 .000000

ROW SLACK OR SURPLUS DUAL PRICES

2) .000000 25.000000

3) .000000 62.500003

4) 5.000000 .000000

NO. ITERATIONS= 2


#8) Problem 1 page 69

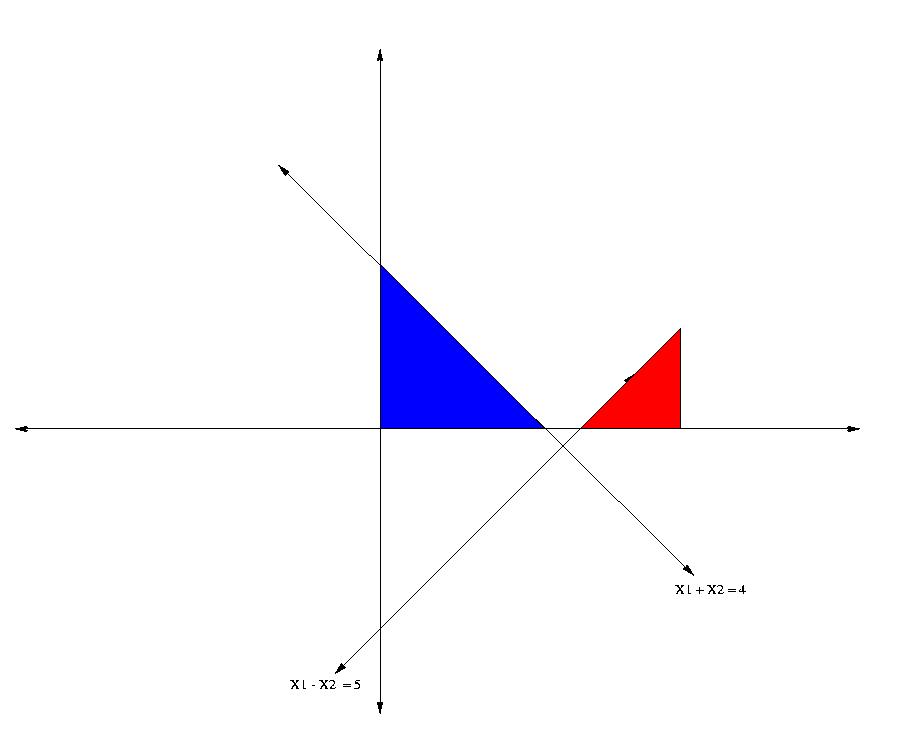

This problem is infeasible.   The blue region in the figure below indicates
the non-negative points (X1, X2) such that X1 + X2 <= 4.  The red region
in the figure below indicates the non-negative points such that X1 - X2 >= 5.
Since the blue and red regions do not intersect. There are no feasible points
for this LP.


LINDO Solution:

MAX X1 + X2

SUBJECT TO

2) X1 + X2 <= 4

3) X1 - X2 >= 5

END


NO FEASIBLE SOLUTION AT STEP 1

SUM OF INFEASIBILITIES= 1.00000

VIOLATED ROWS HAVE NEGATIVE SLACK,

OR (EQUALITY ROWS) NONZERO SLACKS.

ROWS CONTRIBUTING TO INFEASIBILITY

HAVE NONZERO DUAL PRICE.

OBJECTIVE FUNCTION VALUE

1) 4.00000000

VARIABLE VALUE REDUCED COST

X1 4.000000 .000000

X2 .000000 2.000000

ROW SLACK OR SURPLUS DUAL PRICES

2) .000000 1.000000

3) -1.000000 -1.000000

NO. ITERATIONS= 1

#9) Problem 2 page 69

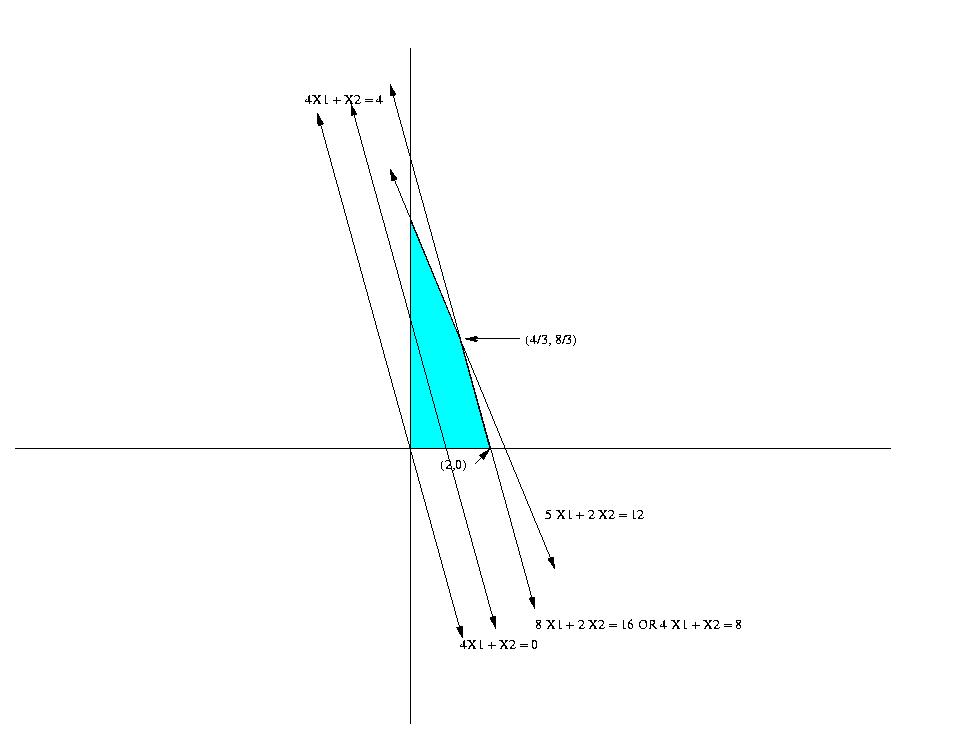

Although LINDO only gives one solution, the problem has multiple optima. Observe that the objective function parallel to the first constraint.

MAX 4 X1 + X2

SUBJECT TO

2) 8 X1 + 2 X2 <= 16

3) 5 X1 + 2 X2 <= 12

END

LP OPTIMUM FOUND AT STEP 1

OBJECTIVE FUNCTION VALUE

1) 8.00000000

VARIABLE VALUE REDUCED COST

X1 .000000 .000000

X2 8.000000 .000000

X2X .000000 .000000

ROW SLACK OR SURPLUS DUAL PRICES

2) .000000 .500000

3) 12.000000 .000000

NO. ITERATIONS= 1


#10) Problem 3 page 70

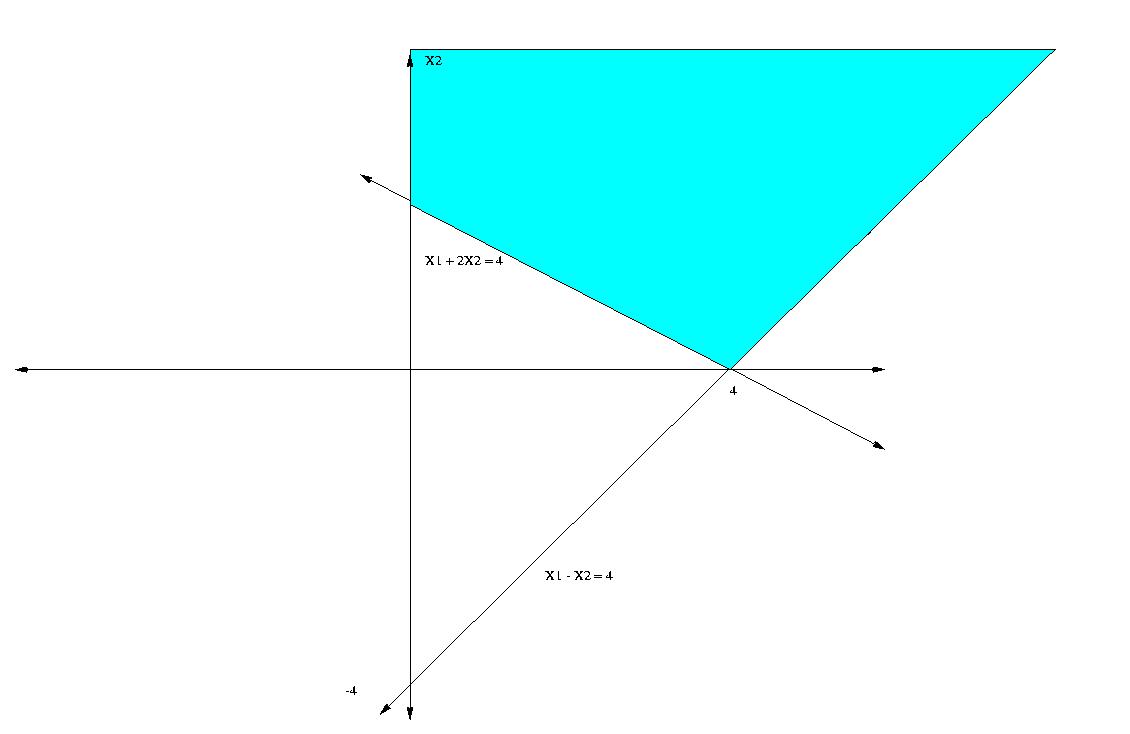

This problem is unbounded.  Any point on the line X1 - X2 = 4 such that
X1 >=4 is feasible.


MAX - X1 + 3 X2

SUBJECT TO

2) X1 - X2 <= 4

3) X1 + 2 X2 >= 4

END

UNBOUNDED SOLUTION AT STEP 1

UNBOUNDED VARIABLES ARE:

SLK 3

SLK 2

X2

OBJECTIVE FUNCTION VALUE

1) 6.00000000

VARIABLE VALUE REDUCED COST

X1 .000000 2.500000

X2 99999903.000000 .000000

ROW SLACK OR SURPLUS DUAL PRICES

2) 99999903.000000 .000000

3) .000000 1.500000

NO. ITERATIONS= 1
